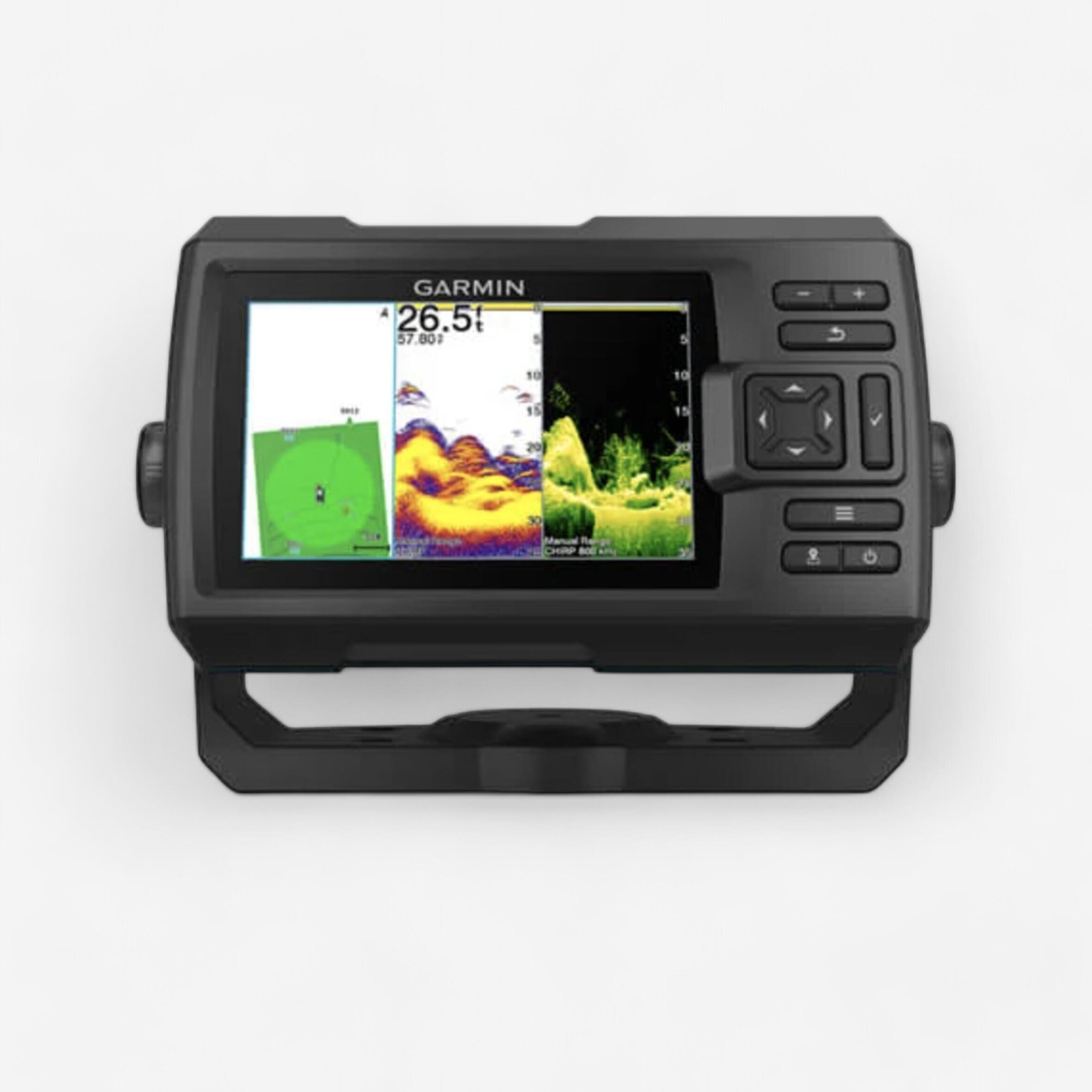

FISHING SONAR STRIKER VIVID 5CV
Store Availability
Store Availability
BENEFITS
Versatility
GT20 sensor: CHIRP traditional - ClearVü
Precision
High-sensitivity GPS to mark and navigate to waypoints.
Visibility
5-inch screen to assess the elements detected by the sensor.
Visual efficiency
7 vibrant colours to see fish and structures with precision and clarity.
Capacity
Store up to 8000 km² of bathymetric contour charts with contours every 30 cm.
TECHNICAL INFORMATIONS
FEATURES
- Fishfinder dimensions: 18.8 x 11.6 x 5.4 cm
- Display format: 5 inches
- Weight: 500 g
- Waterproof rating: IPX7
- Display type: WVGA Colour
- Display resolution: 800 x 480 pixels
- GT20 sensor
- Traditional mode: 50/77/200 kHz CHIRP (medium and high)
- ClearVü Mode: 260/455/800 kHz
- Quickdraw Contours feature
- Highly sensitive GPS
- Transmission power: 500 W (RMS)
- Maximum depth: 700 metres
- Course Over Ground (COG)
- Consumption set to 12 V: 0.40 A
CLEAR AND COLOURFUL SONAR
The colour you choose for your sonar says a lot about your fishing style. The good news: There are 7 new striking options for the Striker Vivid! According to your preferences, select the most suitable colour to see fish and the bottom’s structure with maximum contrast and clarity on your sonar’s 5-inch screen.
HIGHLY SENSITIVE GPS - WAYPOINTS MARKED - QUICKDRAW CONTOURS
Plan and create routes, then display the speed of your boat on the sonar using the highly sensitive GPS.
To catch more fish, you need to know where the fish bite. Use the waypoints markings to easily find the way back.
You know the waters you fish in better than anyone else. With the STRIKER VIVID 5cv sonar, you can store up to 8,000 km2 of maps with depth contours of 30 cm (1 pi).
HARDWARE INCLUDED
Use the GT20 sensor provided to obtain views from the traditional Garmin CHIRP sonar and CHIRP ClearVü scanning sonar.
The STRIKER VIVID 5cv sonar includes a tilt/swivel mount, as well as hardware and a cable for mounting to the transom and electric motor.
In the box:
- STRIKER Vivid 5cv
- GT20-TM Sensor
- Power/data cable
- Tilt/swivel mount
- Hardware
- Garmin label
- Documentation
TESTS AND WARRANTY
Warranty
1 Years
