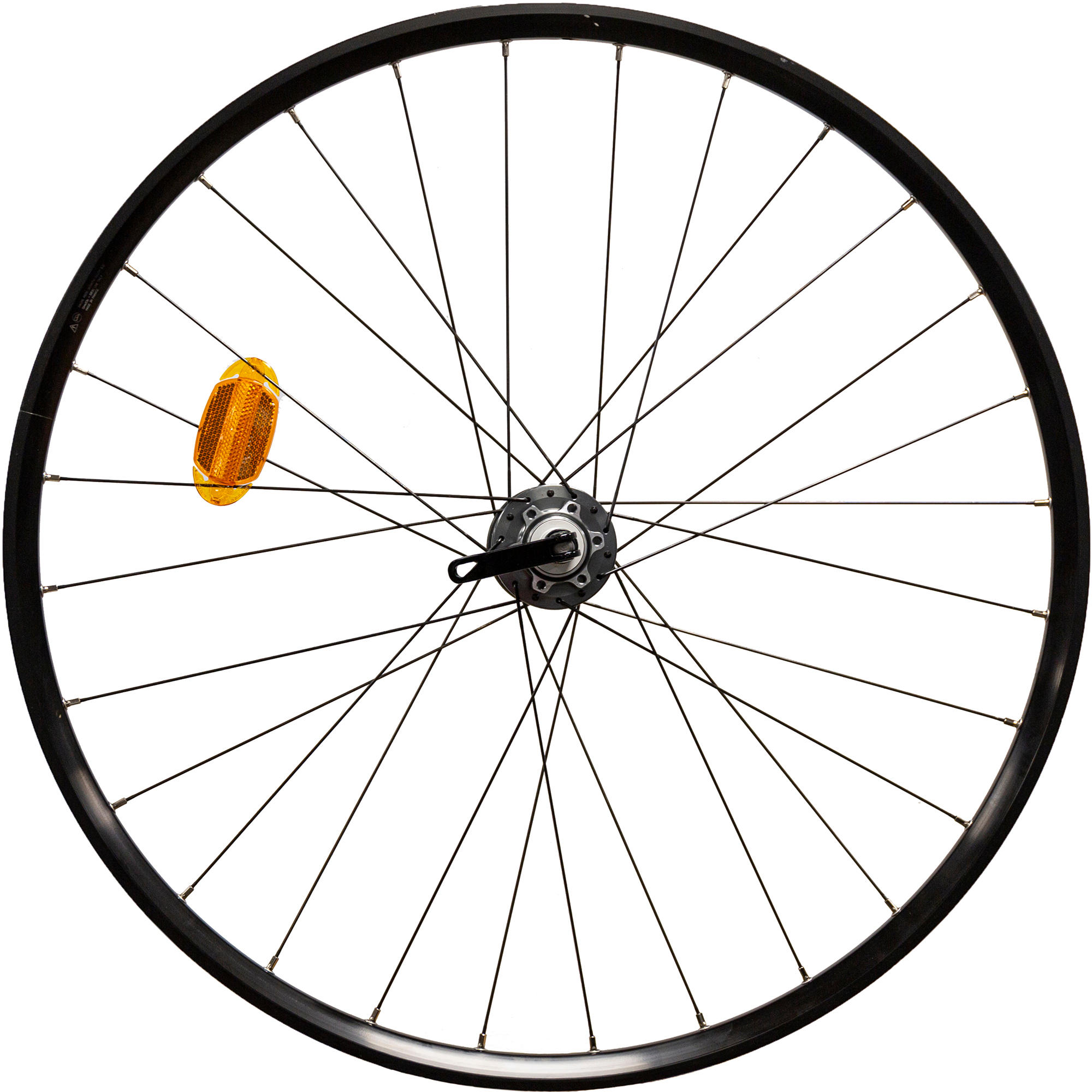

27.5x23c Double-Walled QR Cassette Disc Brake TC Mountain Bike Rear Wheel
Store Availability
Store Availability
BENEFITS
Compatibility
Tyre size: 1.5" - 2.5" (37-64 mm) Tubeless compatible: just add rim tape
Capacity
1 wheel 1 rim strip 1 quick release skewer
Rolling efficiency
Sealed cartridge bearings.
Repair
Repair your product and give your equipment a second life!
TECHNICAL INFORMATIONS
Technical features
ETRTO diameter: 584x23c
Rim material: Aluminium 6063 / Black
Rim type: Sleeved
Valve hole diameter: 8.5mm
Double-walled
Number of spokes: 28
Spoke length: 267 mm left / 265 mm right
Spoke material: Stainless steel / Black
Shape: Double butted 2/1.7/2
Arrangement: 2-cross
Brake compatibility: 6-hole disc
OLD: 135 mm
Axle length: 145 mm
Axle: QR9

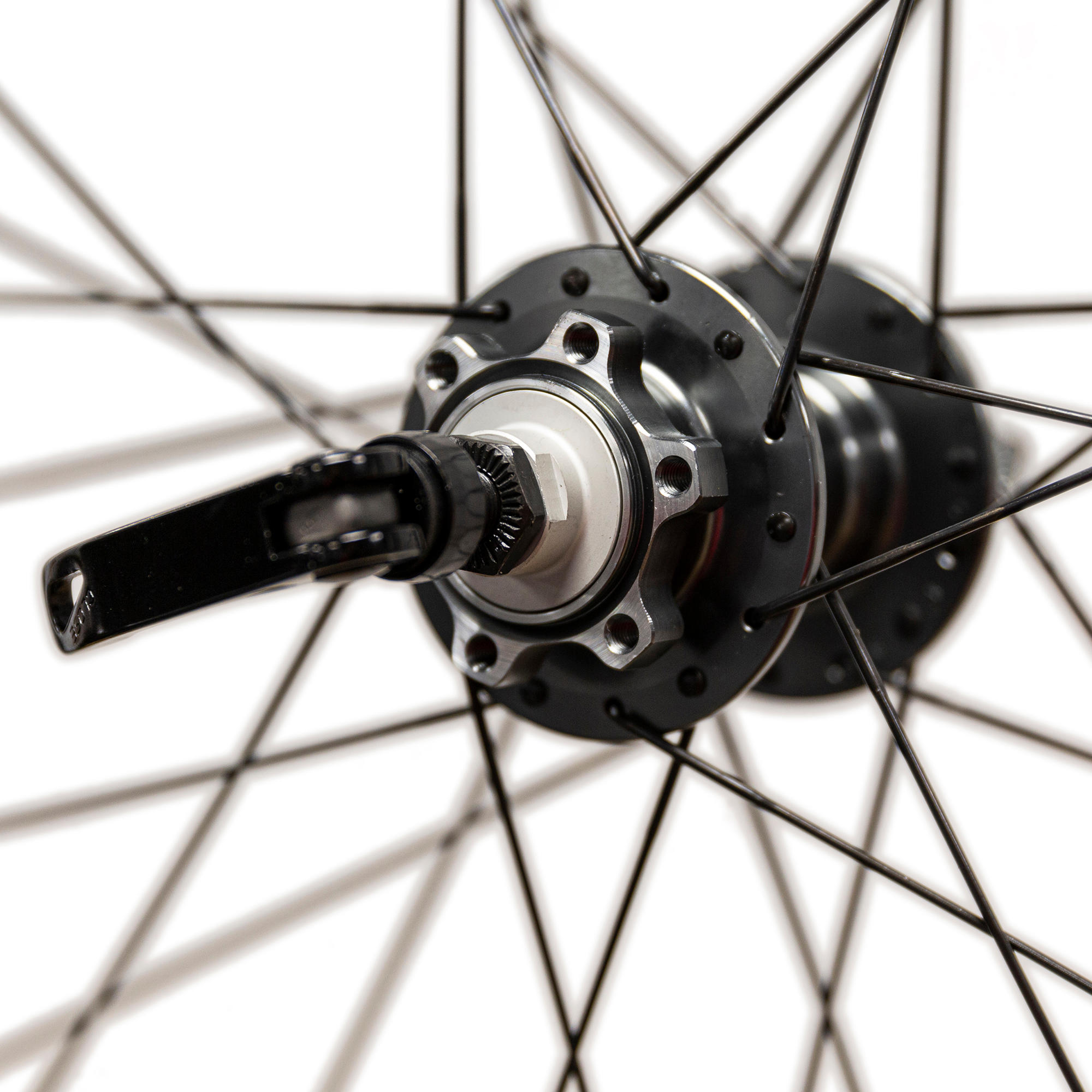

Hub: Aluminium / Silver
Bearings: Sealed

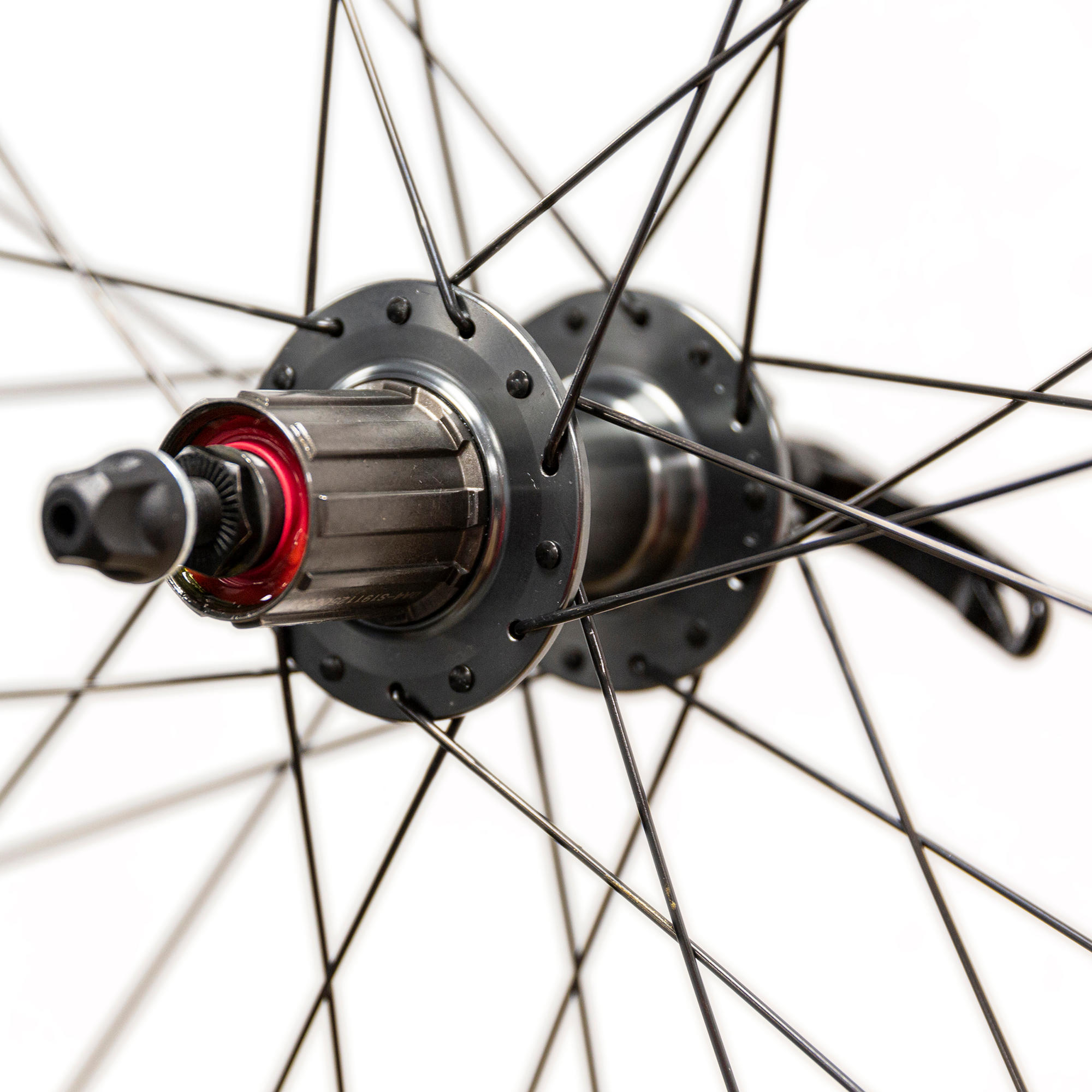

Compatibility: Shimano 8/9/10 speed hub
Length of spokes:
Left Rear Spokes = 267 mm
Right Rear Spokes = 265 mm
Conversion to Tubeless
Can be converted by replacing the rim strip and valve.
User tip:
Respect the tightening torque on the disc, which is 6 Nm, and the tightening of the cassette, which is 40 Nm.
Remember to apply light thread-locking fluid on the threads of the disc screws.
Need Help?
The technicians at your Decathlon store workshop are available to help you replace your bike's parts. Feel free to ask them for help!
composition
composition
Hub: 50.0% Steel, 50.0% Aluminium; Rim: 100.0% Aluminium; Spokes: 100.0% Steel
Tips for storage and maintenance
Storage tips
Store the wheel in a cool, dry place, away from corrosive products and salty air.
Restrictions on use
Get the compatibility and assembly checked by a technician
TESTS AND WARRANTY
Warranty
2 Years
