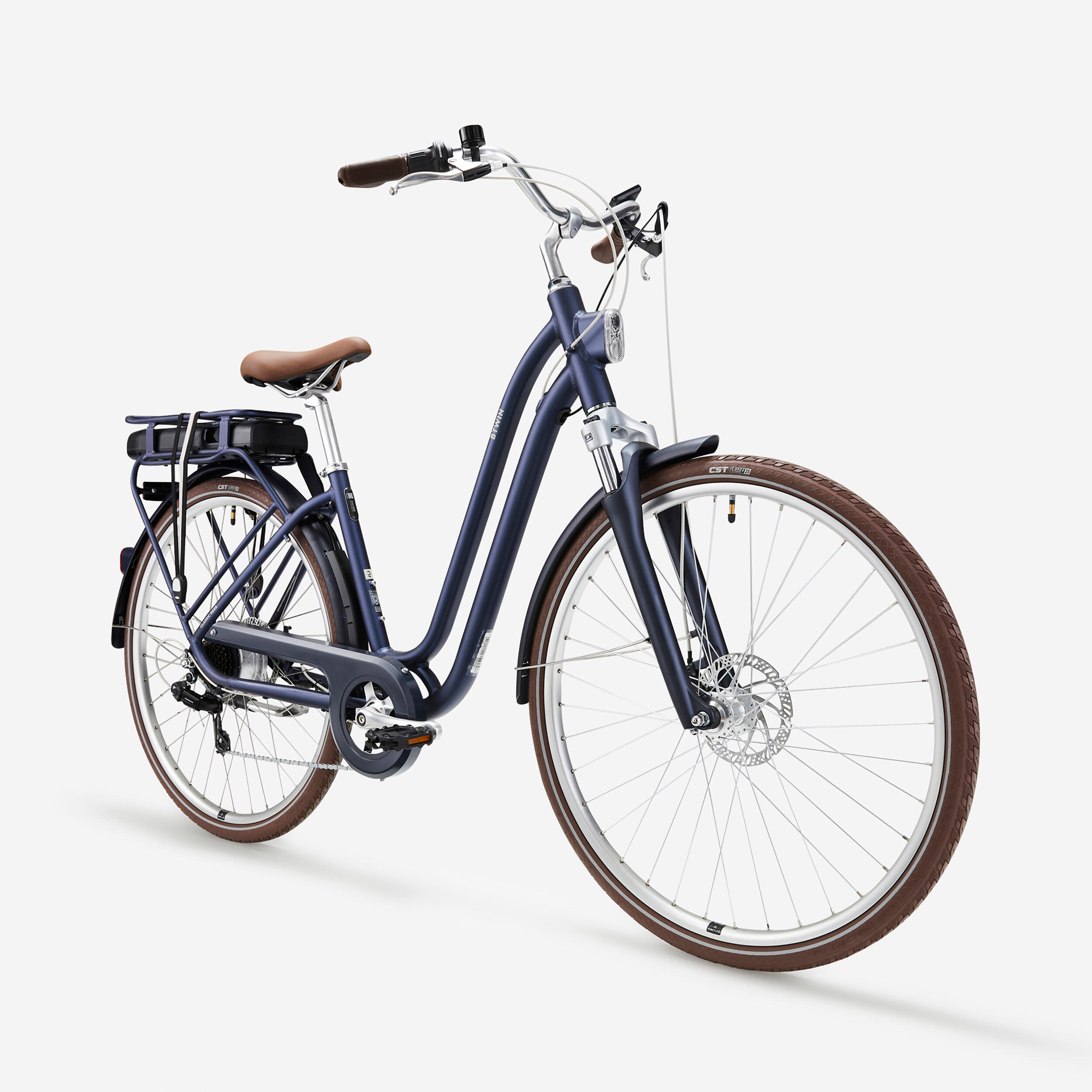

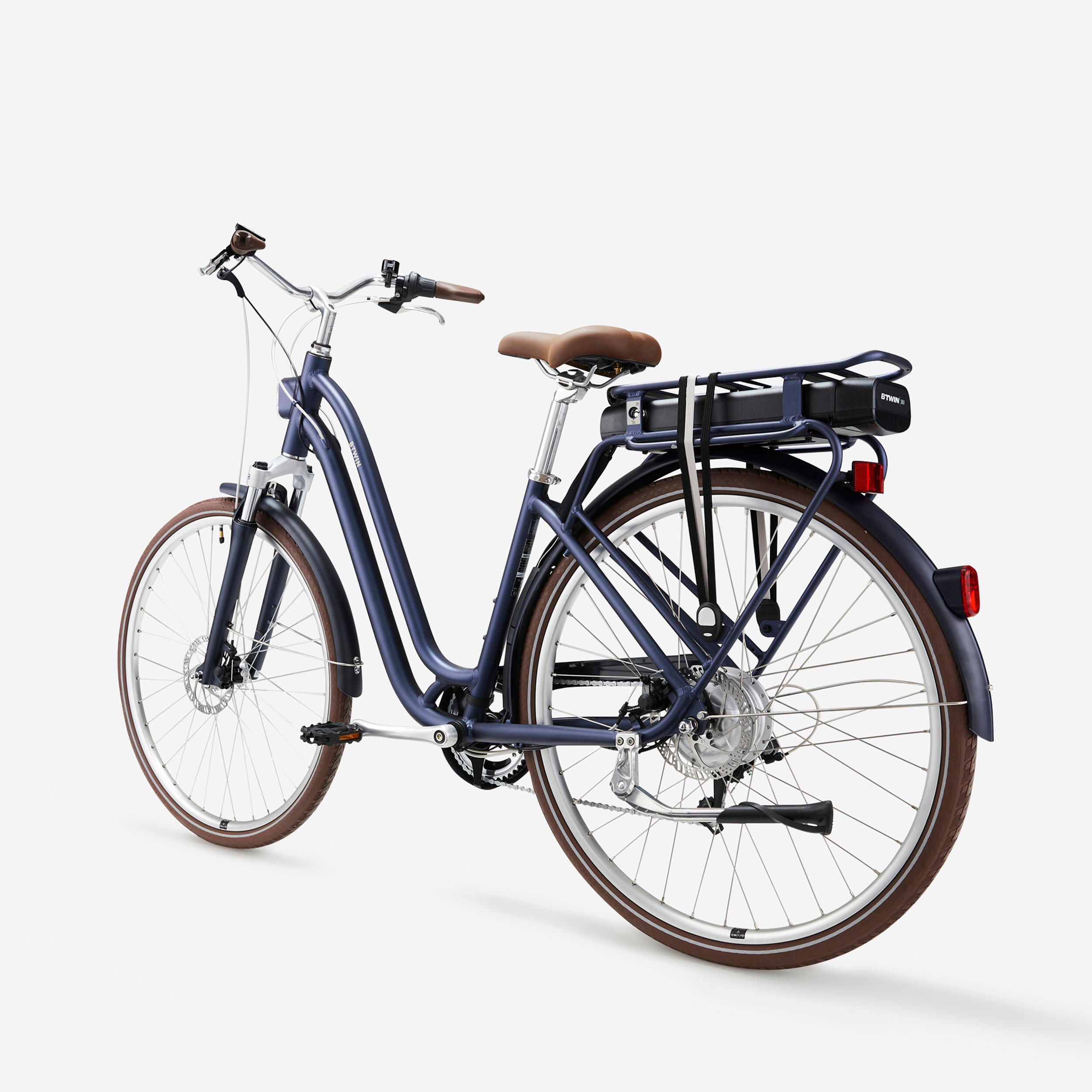

Low Frame Electric Town Bike Elops 900 E - Dark Blue

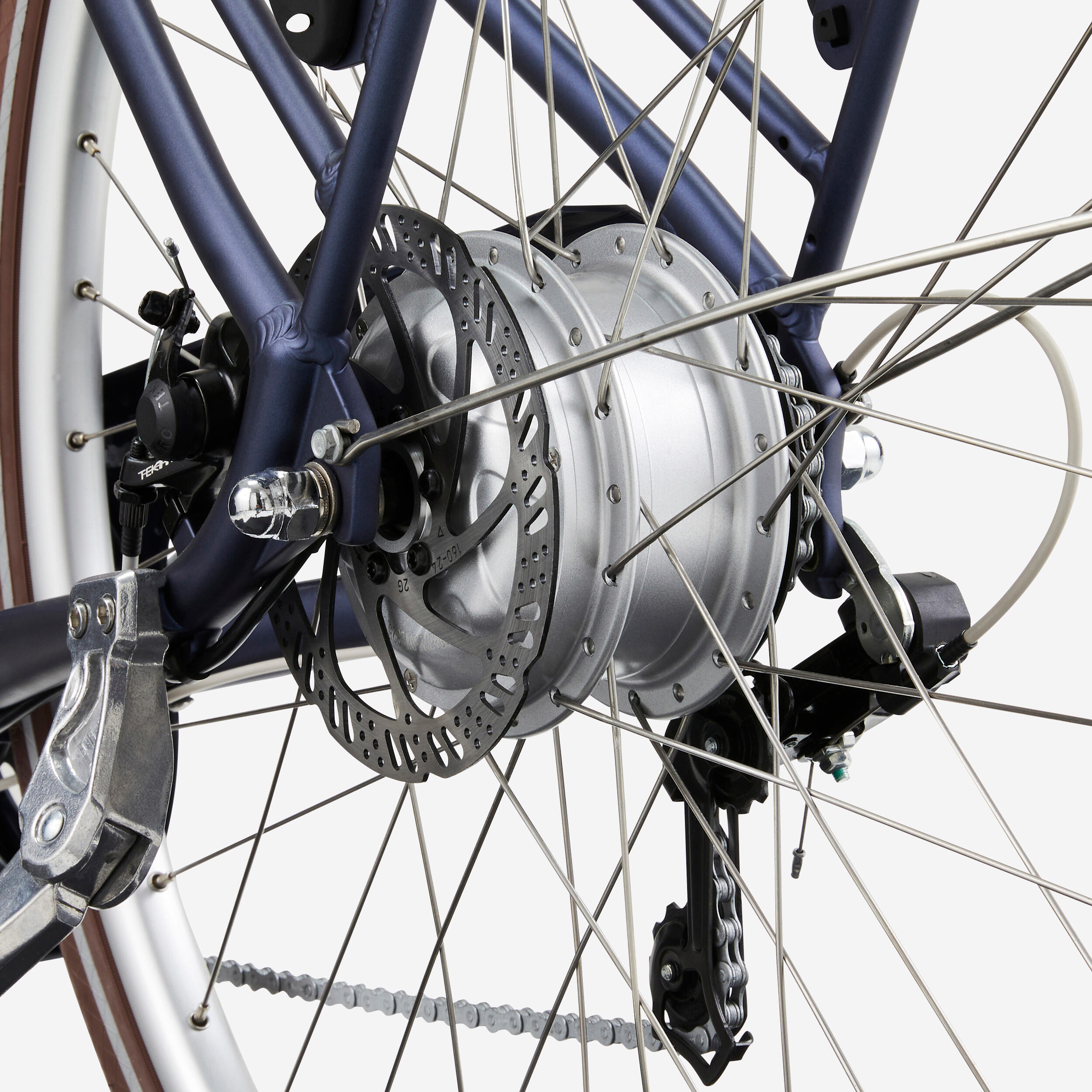

Motor

Rear brushless wheel motor: 36 volts, 250 Watt MAX (weight:

2.95 kg).

Equipped with our new DRIVER 2024 to optimise battery life and motor assistance.



It has an engine torque up to 35 Nm. This value allows you to assess the ease with which the bike can tackle certain obstacles (a climb, for example)



The engine is also linked to a cadence sensor that provides electrical assistance based on your pedalling motion.

Assistance control

There's an LCD control screen to the left of the handlebar so you can easily choose between the 3 assistance levels without letting go:



Off Mode - Deactivated (the motor is not in use).

Mode 1: the motor increases your pedalling power by +100%

Mode 2: the motor increases your pedalling power by +220%

Mode 3: the motor increases your pedalling power by +330%

"Walk" Mode (Mode 1 + hold the "+" button for 5 seconds): provides assistance when you're walking alongside your bike

Other screen features

Remaining battery life (percentage).

Current speed,

Total distance (ODO),

Today's distance (TRIP: reset it by holding down the "-" button for several seconds)

Distance that can be covered with the remaining battery life based on the mode being used (TRIP TO GO).



You can also turn the lights on, which will activate the screen's backlighting.



There's a USB port under the screen to keep your smartphone or rechargeable battery (power pack) topped up.

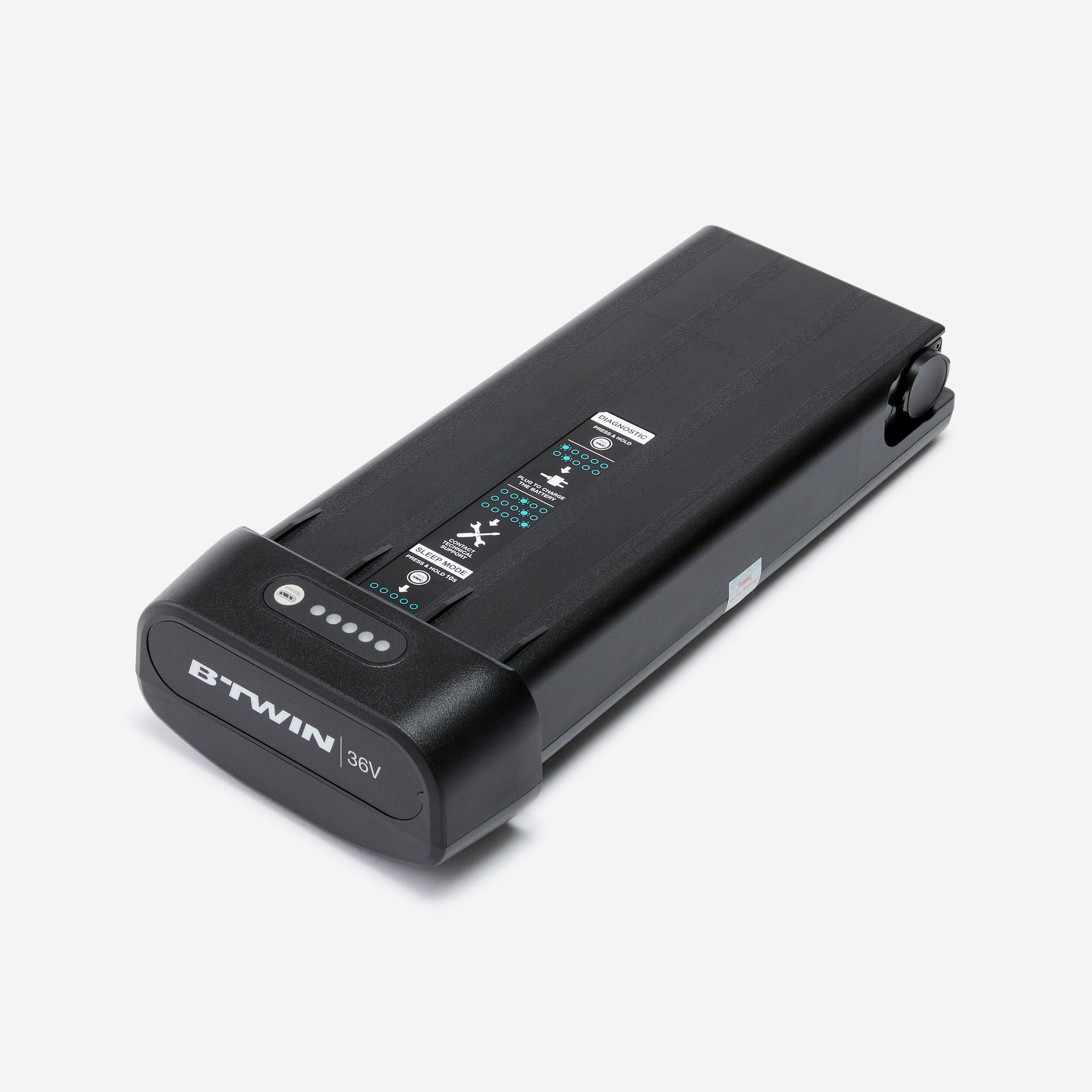

Battery

Very reliable 36V 11.6Ah lithium-ion cells from LG/Samsung with a 417Wh capacity.



Removable for easier recharging (at the office, for instance), the battery is locked on with a key to prevent theft (bike comes with two keys).



Please note: the battery should be locked when in use to keep it in its housing and prevent accidental disconnection.

Weight: 2.64 kg

Power

The range of a battery with a 417Wh capacity is at least 60 km (mode 3 - POWER) and up to 90 km (mode 1 - ECO).



This bike has undergone the R200 test, which is a standardized test developed by the BOSCH motor manufacturer to measure the battery life of bikes (with 200% assistance) as a way of comparing electric bikes.



The result of the R200 test for this bike was 49.3 km.



Note: Battery range may vary depending on the weight being transported.

Frame

Frame made from 6061 aluminium to be lighter and more dynamic.Available in a low frame, which is easier for both men and women to step through, and a high frame.



Frame weight: Between 4.3 kg and 4.4 kg depending on the size and shape of frame.

Colour: navy blue with matte finish.

Fork

Suspension fork to absorb bumps in the road and keep you more comfortable as you ride (SUNTOUR NEX model - aluminium, 63 mm travel).

Braking

Front and rear mechanical disc brakes (cable action) for braking that remains effective no matter the weather.

Aluminium brake levers.

After-sales service: Auriga Tektro semi-metal brake pads (reference: 8325111)

Handlebar / stem / steering

Aluminium Dutch-type handlebar and damper stem (diameter: 25.4 mm / 1"1/8) that can be moved up or down for a more comfortable, upright back position.



Grips with connectors to attach CL 500 lights (reference: 8584259) for greater lateral visibility when riding.

SADDLE/SEAT POST

Aluminium seat post (diameter: 28.6 mm).



Wide saddle with foam padding adapted to the pressure points between your bum and the saddle. Adjustable clamp so you can optimise the saddle position.

Lockable seat clamp (diameter: 34.9 mm) so opportunist thieves can't steal your saddle / seat post.

Visibility

AXA LED battery-powered front and rear lights that need your control screen to be on.

Front light built into the frame and back light built into the rear mudguard to stop it getting broken.



20 LUX lights.

Can be seen from 150 m at the rear, and illuminates 30 m at the front.

Rear reflector built into the pannier rack.

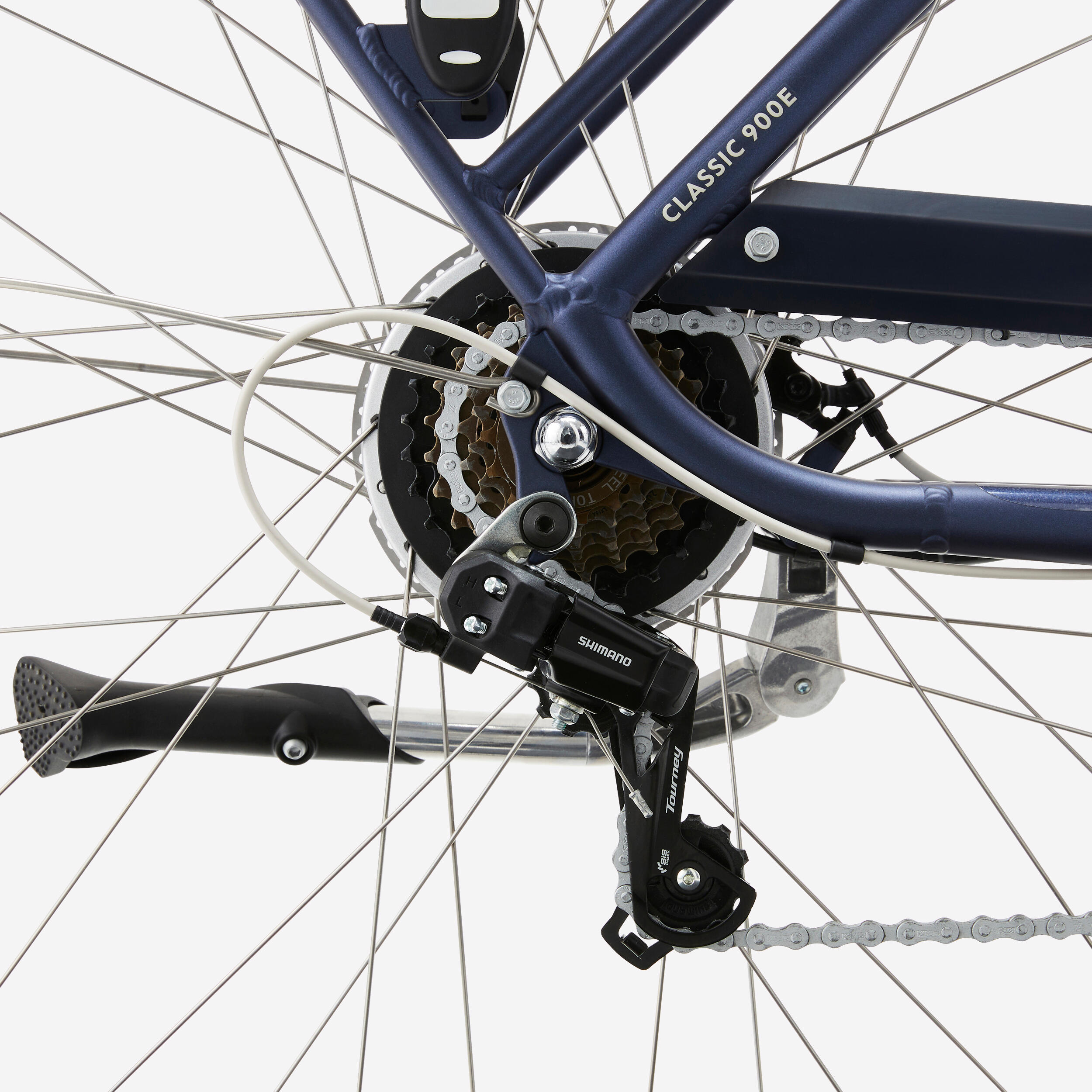

Drive train / Pedals

42-tooth single chainring bottom bracket, 170 mm aluminium crank arms, 7-speed screed derailleur with grip shifter. Shimano TZ500-7 14x28 7-speed freewheel , KMC Z7 RB anti-rust chain with 114 links.

Development: from 3.21 m to 6.42 mResin city pedals that are more comfortable while pedalling and lighter than aluminium.

Wheels

28" (700) front and rear reinforced double-walled aluminium tyres, 36 spokes



The wheel size was selected so that our users can enjoy a more comfortable experience and the ride quality. The front and rear wheels are securely fastened with bolts to deter theft.

Rear

- Rear wheel axle diameter: 12 mm

- 12 mm motor axle, screw thread 20 threads per inch



Front

- Front wheel axle diameter: 9 mm

- 3/8" axle, screw thread 26 threads per inch

Tyre

700x40 low-pressure CST tyres to smooth out bumps and keep you more comfortable as you ride.

Reinforced puncture resistance on tyre tread and reflective strip to increase visibility.



Schrader valves make the tyres easier to inflate (at petrol stations too). The ideal pressure is between 3.5 and 4 bars. This optimises the battery life and prevents punctures.

Equipment

Rear pannier rack, battery-powered front and rear lights, front and rear mudguard, side stand, chain guard.

STAND

Side stand that's screwed to the frame and specially chosen to support the weight of an e-bike, as well as keeping your bike more stable when parked.



Not designed to support the weight of a child in their seat when bike is stationary.

Compatible Accessories

The pannier rack can hold a pannier-mounted child seat (27 kg standard) or any of our ELOPS bags.



The frame has inserts for attaching a folding lock as well as a frame lock (RINGLOCK that stops the back wheel from turning when the bike is parked).



The handlebar is compatible with our 12L front basket 500 (reference: 8031536).



This bike has not been tested and approved for use with a trailer.

How does an e-bike work?

E-bikes assist your pedalling to limit fatigue and keep you cool while riding.However, you still need to pedal for the motor to provide this assistance!



The motor powers you up to a maximum speed of 25 km/h and cuts out when you stop pedalling.

If you don't want to use the assistance, it can be turned off at any time so that you can ride as if you were on a normal bike.

Your e-bike has also been tested for riding in the rain.

Which is the right size?

2 sizes available, low step-through frame only.

Size S / M:from 1.55 m to 1.75 m

Size L/XL: from 1.75 m to 1.95 m

If you're between sizes, the bigger size will give you a more comfortable position.

Bike weight

(pedals and battery included):

Starting at 25.4 kg in size M.

Maximum weight

This e-bike has been approved according to standard EN 15194 for a maximum weight of 150 kg (user + load weight).

How to charge your e-bike

The removable, lockable battery can be charged at a mains socket either on the bike or off it. Bike comes with a charger.

A battery takes 5 hours to fully charge.

Maintenance / Storage

A Lithium-Ion battery should be charged regularly, before it gets completely drained.



A battery that will be unused for a long period of time should be stored in "deep sleep" mode (hold the battery's power button for at least 10 seconds). at 80% charge. Otherwise, charge it every 3 months.



To keep it at its best, store the battery in a warm, dry place (25°C).

Spare part availability

10 years availability on electric parts (motor, battery, electric elements or equivalent).

Care tips

1) Before performing any work on your e-bike (electrical or mechanical maintenance), you must turn off your bike and remove the battery. 2) Regularly maintain your drive train (chain should be cleaned and lubricated).

3) Check your tyre pressure at least once a month (4 bars). Poorly inflated tyres considerably reduce your bike's battery life.

Storage tips

To maximise your bike's overall life span, store your bike in a place that is protected from the elements and well-ventilated.

It's also recommended that you remove the battery and store it at room temperature when you're not using it, particularly in freezing weather.

Use restrictions

The marine environment (air, ocean spray) is extremely corrosive for mechanical and metallic parts, so it's strongly recommended that you regularly lubricate your bike's entire drive train.



We also recommend wiping the steering elements (handlebars, seat post, etc) with a damp cloth from time to time to remove salt deposits or moisture that may accumulate.

Design

Designed by our team of engineers and designers in Lille, France.Assembled in Portugal and Italy.

A WORD FROM THE TEAM

"Electric bikes are an opportunity to ride around town without breaking a sweat, never being late, and carrying what you need. This makes the bike a great choice for daily travel around town.Work out during your commute!

"
